Workday Integration X509 Certificate based Auth

Last Updated:


The integration offer authentication based on an x509 key pair, rather than a password. This page will help you configure the x509 cert that was generate by the integration consultant on the project.

Configure x509 cert on Workday

  • Configure Web Service Security in Workday. Select the Beamery integration service user


  • Create the x509 public key
  • Select the option to `Create x509 Public Key`. Ensure you check the box titled ‘Enable X509 Token Authentication’

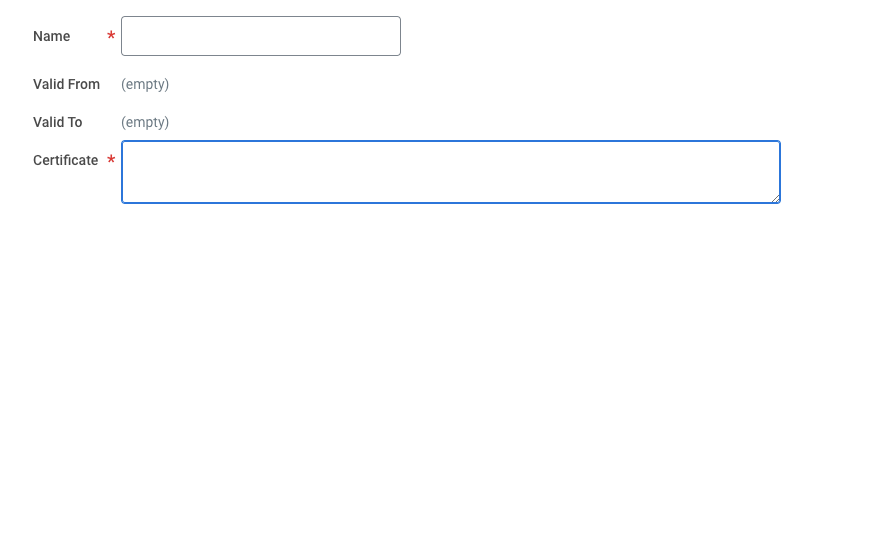

  • Paste the public key into the Certificate box and give it a name:

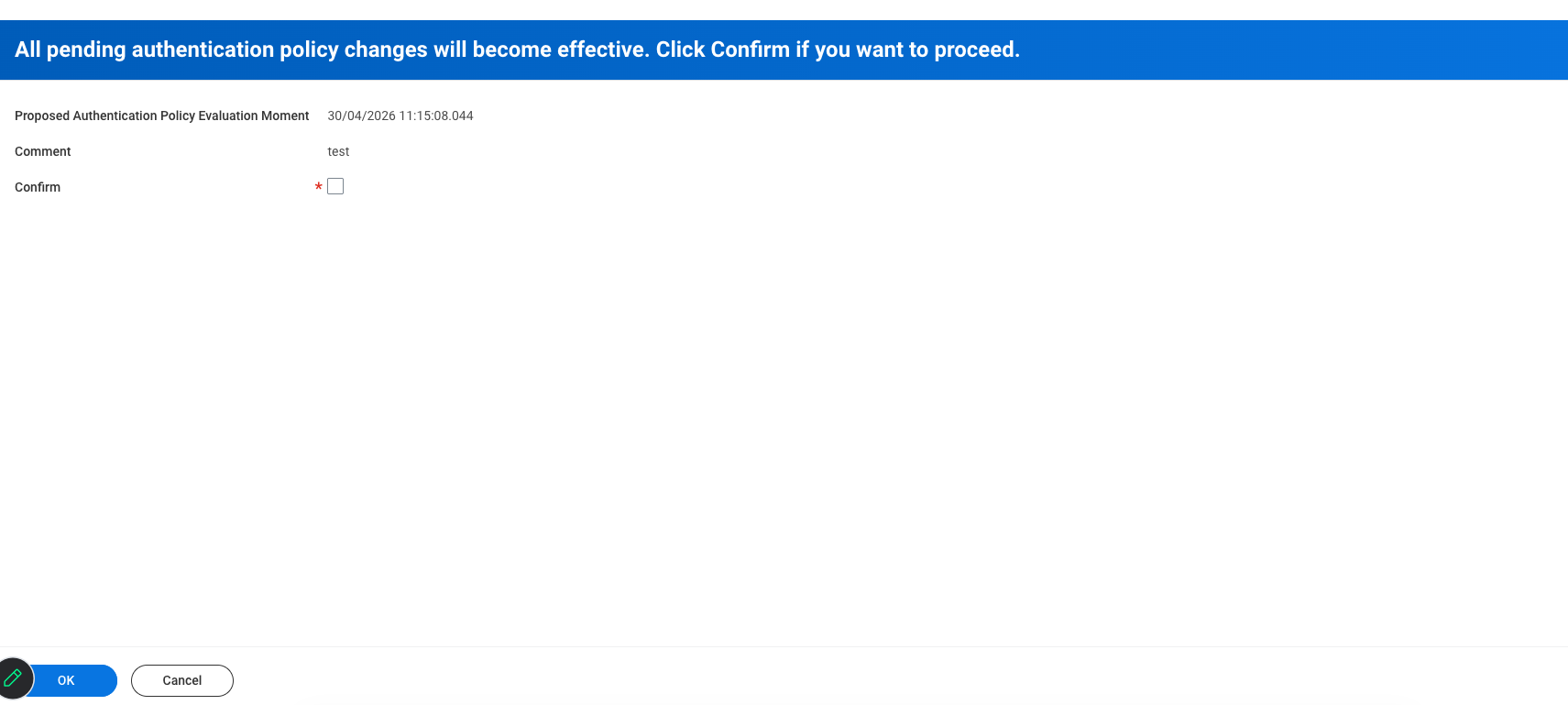

  • Confirm the changes by clicking OK

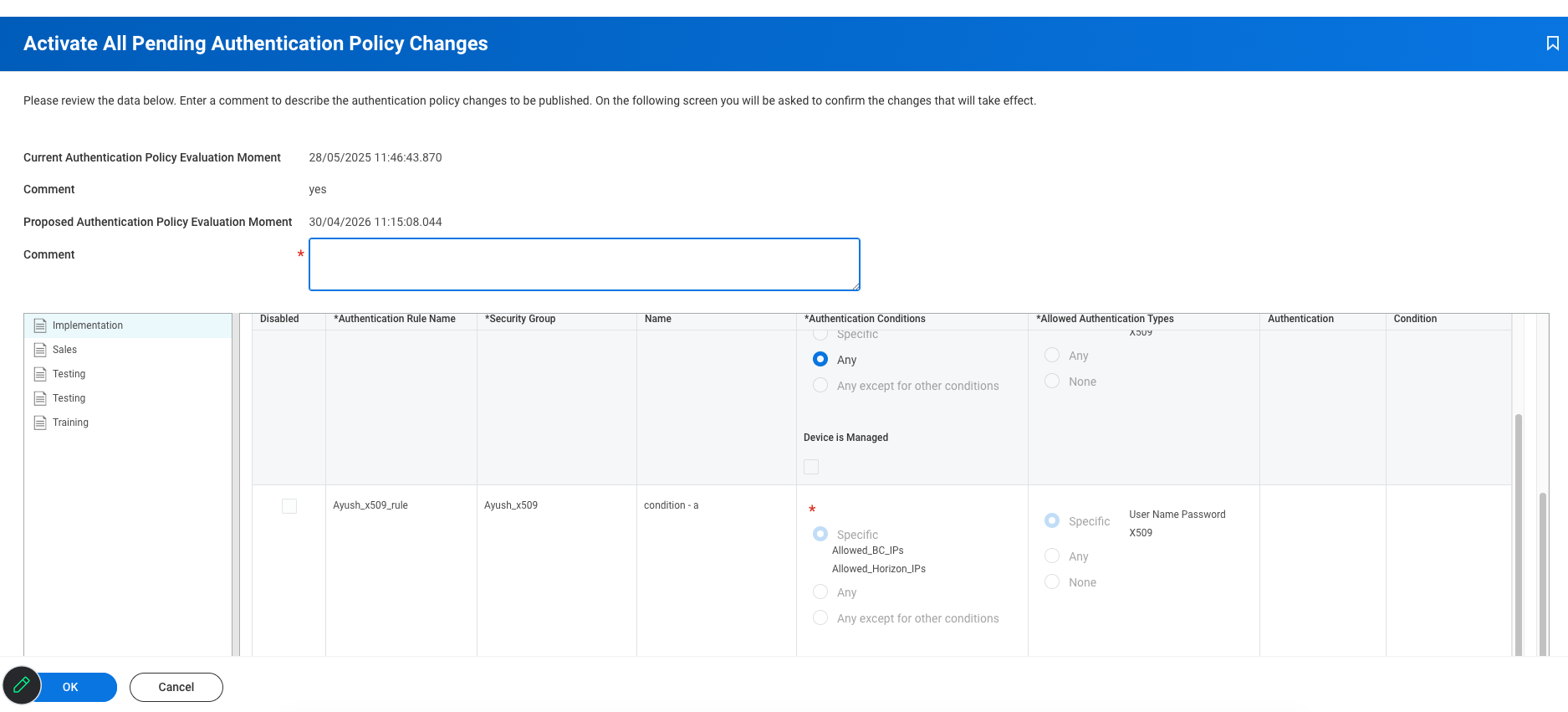

  • Ensure in the Authentication Policy report, the Allowed Authentication Types includes X509.
